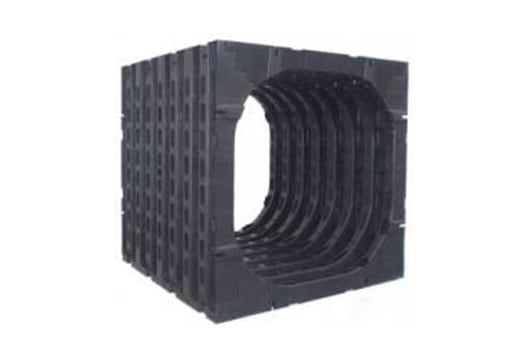

Control-Box Infiltration Boxes
Control-Box Infiltration Boxes are designed to desiccate graveled hard-surfaced areas such as parking lots, squares, rooftops, roads, as well as green areas. The exceptional durability of the infiltration boxes up to 60SLW (after covering the ground with 1-meter soil layer) allows free use of the surface above.
Structure of an infiltration box, comprising a 500mm tunnel, enables monitoring and cleaning of the interior of the underground installation system. Its distinctive feature is also exceptionally easy installation of modules that can be completed by only few persons, even in large-scale projects.
System Advantages:
- High store capacity- up to 95%
- High durability (up to 60 SLW while covered with 1m soil layer)
- An inspection tunnel of 500 diameters, enabling module cleaning and unlimited monitoring
- The low weight of the Infiltration Box
- Easy and fast installation
- Saves investment area due to the possibility of free use of a surface above the infiltration boxes.
Choosing to install Control-box Infiltration boxes systems will result in numerous benefits, providing a reduction of the costs, investment area saving, and flexible design.
Specifications:
- Dimensions: Length[mm]: 2400, 1200, 600 (others available upon request), Width 600 mm, Height 600 mm
- Capacity: 864, 432, 216 litres
- Store capacity – 95%
- Material: polypropylene (PP)
- Minimal soil layer required to cover the boxes under particular circumstances:
pedestrian – min. 0.5 m
passenger cars – min. 0.8 m
large goods vehicles SLW 30 – min. 0.8 m
large goods vehicles up to SLW 60 – min. 1.0 m - Maximum covering layer – 2.40 m
- Maximum number of layers – max. 4 layers
- Maximum Depth of foundation – max 3.0 m (others available upon request)
- Types of connections of the pipes (DN) 110, 160, 200, 315, 400, 500

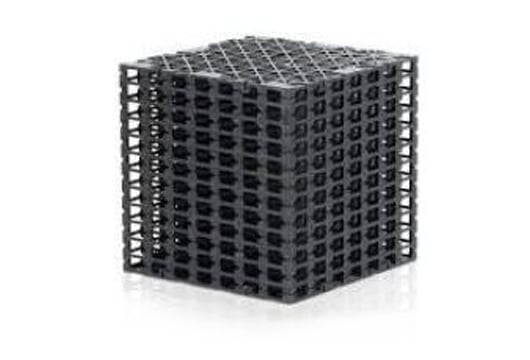

Vario-Box Infiltration Boxes
Vario-Box Infiltration Boxes – Similarly to Control-Box Infiltration Boxes Systems – enables retention of rain water from hard- surfaced parking lots, squares, rooftops, roads, or green areas. On their own or combined with Control-box systems they can provide a variety of combinations adjusted to measures, geometry, and functionality, all according to our clients’ expectations.
Vario-box Infiltration boxes are produced in standard dimensions 100, 300, 500, and 600 mm- which enables flexible system design, depending on our customers’ needs.
Exceptional competitiveness of Vario Box infiltration systems is thanks to the quality of its elements produced from durable polypropylene, high store capacity (up to 95%), three-dimensional water supply and ability to connect pipes with diameters from DN110 to DN500.
Vario-Box Infiltration boxes system is compatible with Control-Box Infiltration Boxes- those both systems when connected in a variety of combinations, create an exceptionally innovative underground system, which includes inspection tunnel enabling unlimited monitoring and module cleaning.
Vario-box Infiltration Boxes System Advantages:
- High Store Capacity- up to 95%
- High Durability (up to 60 SLW, while covered with 0.8 m soil layer)
- Full Compatibility with Control-Box systems
- The low weight of the infiltration box
- Fast and easy Installation
- Saves investment, due to the possibility of free use of a surface above the infiltration boxes.
Choosing to install Vario-box Infiltration boxes systems will result in numerous benefits, providing a reduction of the costs, investment area saving, and flexible design.
System Specifications:
- Dimensions: Length 600 mm (others available upon request), Width 600 mm, Height 100-600 mm (every 50 mm)
- Capacity: (depending on the type) 36 l, 108 l, 180 l, 216 l
- Pojemność magazynowania – 95%
- Material – polypropylene (PP)
- Infiltration Box weight (Depending on the type) 1.8 kg, 5.4 kg, 9.0 kg, 10.8 kg
- Minimal soil layer required to cover the boxes under particular circumstances:
pedestrian – min. – 0,2 m
passenger cars – min. 0,6 m
large goods vehicles SLW 30 – min. 0,8 m
large goods vehicles up to SLW 60 – min. 0,8 m - Maximum covering layer – 3.00 m
